Stainless Steel PU Panel
We provide three insulation materials can choose: PU , EPS , XPS. The connection method: eccentric suspension hook buckle plate, matchboard, inserts the oral plate pours into the foaming.
Specification：
Taking polyurethane with excellent insulation performance as core material and colored steel sheet,304 stainless steel or aluminum sheet as external material, the sandwich-type board can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system.
PU panel（PPGI）
PPGI (Prepainted galvanized steel sheet)covered in both sides with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/180mm/200mm
Thickness of PPGI=0.3mm/0.4mm/0.5mm
PU panel（Stainless Steel）
Stainless steel covered in both sides with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/180mm/200mm
Thickness of Stainless Steel=0.5mm/0.6mm/0.7mm/0.8mm
PU panel（Embossed Aluminum）
Embossed Aluminum covered in both sides with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/180mm/200mm
Thickness of Embossed Aluminum =0.5mm/0.6mm/0.7mm/0.8mm
PU panel（PPGI+ Stainless steel）
PPGI covered in one side with small waves and stainless steel covered in the other side with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/180mm/200mm
Thickness of PPGI=0.3mm/0.4mm/0.5mm
Thickness of Stainless Steel=0.5mm/0.6mm/0.7mm/0.8mm
PU panel（PPGI+Embossed Aluminum）
PPGI covered in one side with small waves and embossed aluminum covered in the other side with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/180mm/200mm
Thickness of PPGI=0.3mm/0.4mm/0.5mm
Thickness of Embossed Aluminum =0.5mm/0.6mm/0.7mm/0.8mm
PU panel（Stainless steel+Embossed Aluminum）
Stainless Steel covered in one side with small waves and embossed aluminum covered in the other side with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/180mm/200mm
Thickness of Stainless Steel=0.5mm/0.6mm/0.7mm/0.8mm
Thickness of Embossed Aluminum =0.5mm/0.6mm/0.7mm/0.8mm

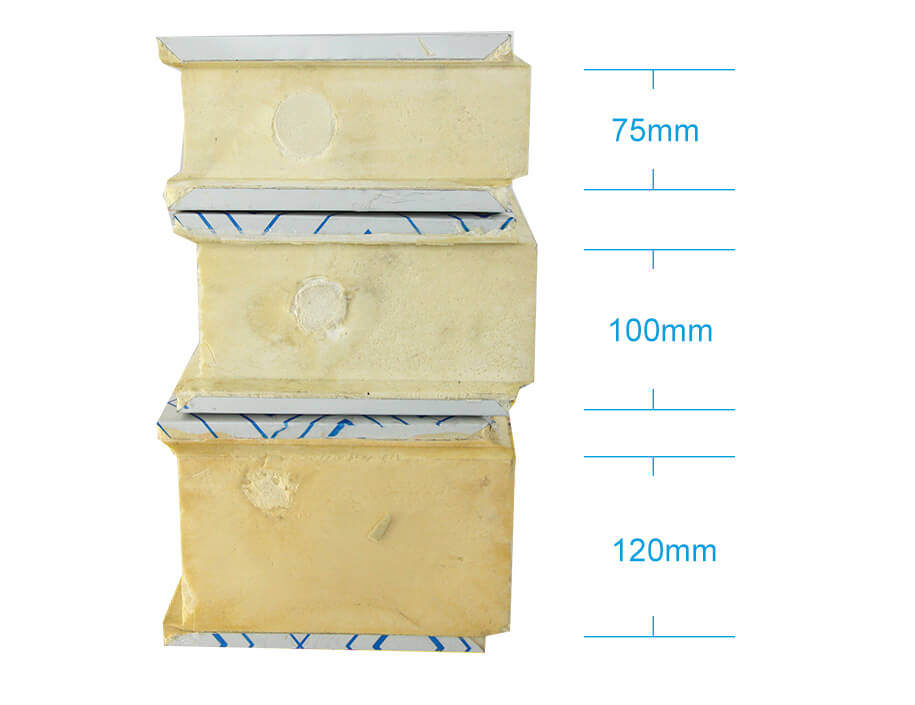

Different thickness of PU panel
